FlightLines Design - Instrument Approach Solutions!

At FlightLines Design our President and Chief Designer has over 31 years’ experience as a Military Air Traffic Controller (Terminal and Tower), nearly 40 years as a civil pilot and 10 years’ practice in third party Instrument Procedure Design (IPD) with qualifications in TP 308/GPH 209 Vol 6 and FAAO 8260.58 Vol 1, 3, 4 and 6 criteria.

FlightLines Design specializes in custom built semi-automated IPD assessment tools. We also provide Military ATC subject-matter expertise to other software developers and the independent review for other third-party designs.  FlightLines Design will soon be offering training in Instrument Procedure Design.

Dave Miller  President FlightLines Design Inc.


Thumbnail Image 1

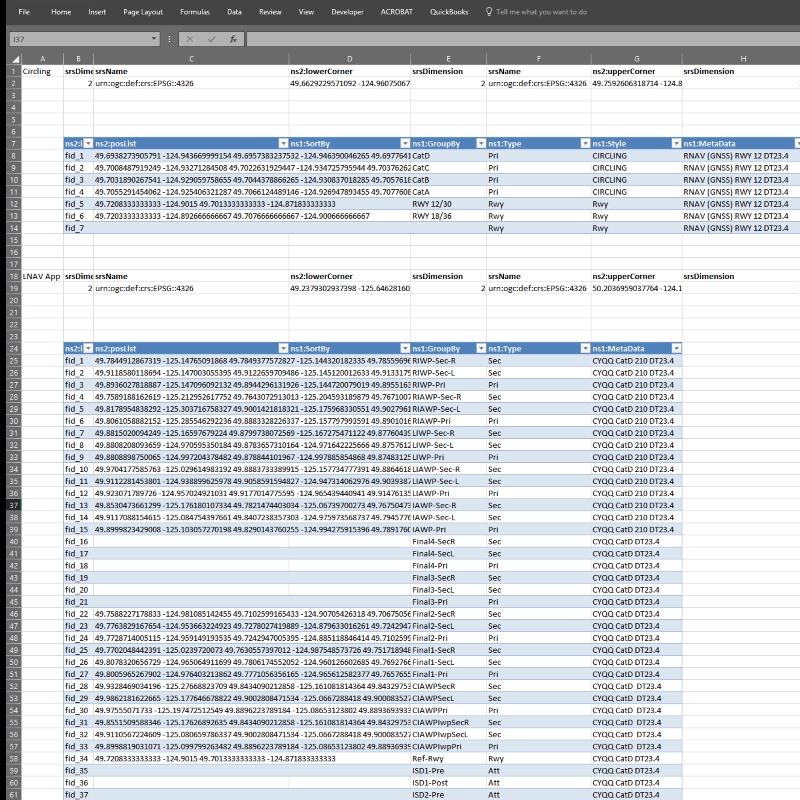

Instrument Procedure Design Tools

FlightLines Design has developed, under contract, Excel® based Instrument Procedure Design Tools with the capability of geodetically assessing obstacle location within segments, obstacle distances and limitation surfaces penetrations. Complex segment structures are adjusted based on turn radii impacted by speed restrictions and revised turn altitudes.

Thumbnail Image 1

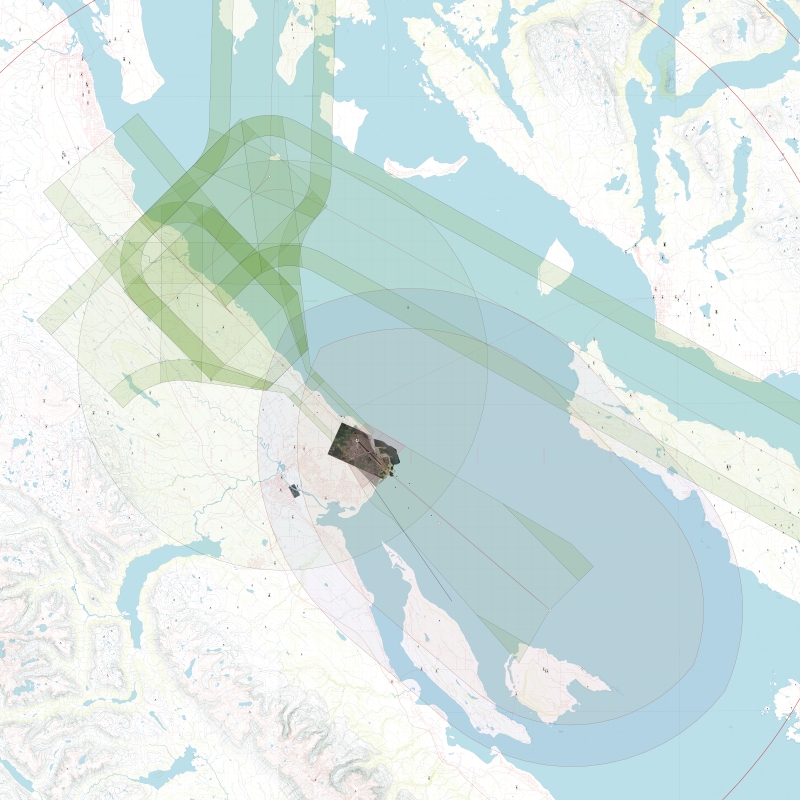

Custom Georeferenced XML Tools

FlightLines Design has developed Excel® code capable of exporting custom-built, georeferenced-XML segment data, compatible with Adobe Illustrator® running Avenza MAPublisher® plugin. These georeferenced layers may then be overlaid on various mapping products and/or exported as shape files or KML/KMZ products.

Thumbnail Image 1

IPD Training

FlightLines Design President is a Transport Canada recognized Instrument Procedure Design instructor. Training programs using CAD based mapping tool/products are currently under development and pending Transport Canada Approval. Training will be based on manual design; however, using readily available software and digital mapping products to perform the assessment. Please check back here for future progress on training development.
